记 Java DataInputStream.readUTF() 的一个小坑

记录今天遇到的 DataInputStream.readUTF() 的一个小坑。

问题描述

最近在看 Flutter 和 Dart。感觉 Dart 上手应该比较容易，所以准备动手写 Dart 代码 (Dart Socket) 访问我们 app 后台接口的。但考虑到实际后台接口是使用私有的协议，其中的数据变换和加解密会带来一些不必要的工作，不易快速实现，所以我自己写了个简单的 Java Server (Java 是我最熟悉的，写起来快) 来验证 Dart Client。说是 Server，其实就是简单地接收 Client 发来的字符串，转换成大写形式，然后发送给 Client。

public class SimpleServer {

    public static void main(String[] args) throws Exception {

        final ExecutorService e = Executors.newFixedThreadPool(10);

        ServerSocket ss = new ServerSocket();
        ss.bind(new InetSocketAddress("127.0.0.1", 6760));

        System.out.println("Server started at port 6760");
        while (true) {
            e.execute(new ClientHandler(ss.accept()));
        }
    }

    private static class ClientHandler implements Runnable {

        private final Socket socket;

        private final DataInputStream input;
        private final DataOutputStream output;

        private ClientHandler(Socket socket) throws IOException {
            this.socket = socket;
            input = new DataInputStream(socket.getInputStream());
            output = new DataOutputStream((socket.getOutputStream()));
        }

        @Override
        public void run() {
            System.out.println("A client coming " + socket.getInetAddress() + ":" + socket.getPort());

            try {
                String echo = input.readUTF();
                System.out.println("Client said: " + echo);
                output.writeUTF(echo.toUpperCase());
                output.flush();
                System.out.println("Server said: " + echo.toUpperCase());
            } catch (IOException e) {
                e.printStackTrace();
            } finally {
                close(input);
                close(output);
                close(socket);
            }

            System.out.println("This client has leave " + socket.getInetAddress() + ":" + socket.getPort());
        }
    }

    private static void close(Closeable closeable) {
        if (closeable != null) {
            try {
                closeable.close();
            } catch (IOException e) {
                e.printStackTrace();
            }
        }
    }
}

再用 Dart 写一个 Client (参考自 Stack Overflow)。代码如下：

import 'dart:async';
import 'dart:convert';
import 'dart:io';
main() async {
  Socket socket = await Socket.connect('127.0.0.1', 6760);
  print('connected');

  // listen to the received data event stream
  socket.listen((List<int> event) {
    print(event);
    print(utf8.decode(event));
  });

  // send hello
  socket.add(utf8.encode('hello'));

  // wait 5 seconds
  await Future.delayed(Duration(seconds: 5));

  // .. and close the socket
  socket.close();
}

看起来也不难，无奈调试发现一个奇怪的问题： Server 端可以看到 Client 端连上来，但死活收不到数据，阻塞在 String echo = input.readUTF() 这里。

毫无头绪，于用 Java 写个类似的 Client 验证， Server 和 Client 之间收发数据完全正常。

public class SimpleClient {

    public static void main(String[] args) throws IOException {
        Socket s = new Socket();

        s.connect(new InetSocketAddress("127.0.0.1", 6760));

        DataInputStream input = new DataInputStream(new BufferedInputStream(s.getInputStream()));
        DataOutputStream output = new DataOutputStream(new BufferedOutputStream(s.getOutputStream()));

        output.writeUTF("hello");
        output.flush();

        System.out.println("received: " + input.readUTF());


        close(input);
        close(output);
        close(s);
    }

    private static void close(Closeable closeable) {
        if (closeable != null) {
            try {
                closeable.close();
            } catch (IOException e) {
                e.printStackTrace();
            }
        }
    }
}

排查问题各种折腾偶然发现另一个现象：Dart Client 打印出 Java Server 发送的数据时有一个多出来的乱码。

Java Server 使用 DataOutputStream.writeUTF() 发送数据：

output.writeUTF("HELLO");
output.flush();

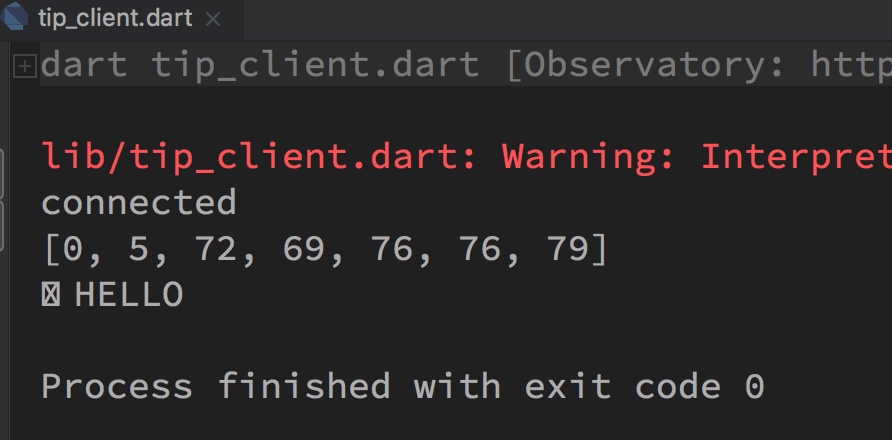

Dart Client 使用 socket.listen() 接收数据并打印：

socket.listen((List<int> event) {
  print(utf8.decode(event)); // HELLO 前面有一个乱码
  print(event);              // [0, 5, 72, 69, 76, 76, 79]
}

event 是 List<int>，其中后面几个数字容易理解，就是 “HELLO” 对应的 ASCII 码。那 0 和 5 又是什么？

readUTF() 和 writeUTF()

基于这两个现象，

• Java Client 和 Java Server 可以正常通信，Dart Client 就不行
• DataOutputStream.writeUTF() 发送的数据会多出一些字节

我看了下 DataOutputStream.writeUTF() 的文档和代码。(其实稍加仔细看下文档就能明白问题所在了)

/**
 * Writes a string to the underlying output stream using
 * <a href="DataInput.html#modified-utf-8">modified UTF-8</a>
 * encoding in a machine-independent manner.
 * <p>
 * First, two bytes are written to the output stream as if by the
 * <code>writeShort</code> method giving the number of bytes to
 * follow. This value is the number of bytes actually written out,
 * not the length of the string. Following the length, each character
 * of the string is output, in sequence, using the modified UTF-8 encoding
 * for the character. If no exception is thrown, the counter
 * <code>written</code> is incremented by the total number of
 * bytes written to the output stream. This will be at least two
 * plus the length of <code>str</code>, and at most two plus
 * thrice the length of <code>str</code>.
 *
 * @param      str   a string to be written.
 * @exception  IOException  if an I/O error occurs.
 */
public final void writeUTF(String str) throws IOException {
    writeUTF(str, this);
}

static int writeUTF(String str, DataOutput out) throws IOException {
    int strlen = str.length();
    int utflen = 0;
    int c, count = 0;

    ...
    out.write(bytearr, 0, utflen+2);
    return utflen + 2;
}

/**
 * See the general contract of the <code>readUTF</code>
 * method of <code>DataInput</code>.
 * <p>
 * Bytes
 * for this operation are read from the contained
 * input stream.
 *
 * @return     a Unicode string.
 * @exception  EOFException  if this input stream reaches the end before
 *               reading all the bytes.
 * @exception  IOException   the stream has been closed and the contained
 *             input stream does not support reading after close, or
 *             another I/O error occurs.
 * @exception  UTFDataFormatException if the bytes do not represent a valid
 *             modified UTF-8 encoding of a string.
 * @see        java.io.DataInputStream#readUTF(java.io.DataInput)
 */
public final String readUTF() throws IOException {
    return readUTF(this);
}

/**
 * Reads from the
 * stream <code>in</code> a representation
 * of a Unicode  character string encoded in
 * <a href="DataInput.html#modified-utf-8">modified UTF-8</a> format;
 * this string of characters is then returned as a <code>String</code>.
 * The details of the modified UTF-8 representation
 * are  exactly the same as for the <code>readUTF</code>
 * method of <code>DataInput</code>.
 *
 * @param      in   a data input stream.
 * @return     a Unicode string.
 * @exception  EOFException            if the input stream reaches the end
 *               before all the bytes.
 * @exception  IOException   the stream has been closed and the contained
 *             input stream does not support reading after close, or
 *             another I/O error occurs.
 * @exception  UTFDataFormatException  if the bytes do not represent a
 *               valid modified UTF-8 encoding of a Unicode string.
 * @see        java.io.DataInputStream#readUnsignedShort()
 */
public final static String readUTF(DataInput in) throws IOException {
    int utflen = in.readUnsignedShort();
    ...
}

文档明确提到：

• DataOutputStream.writeUTF() 和 DataInputStream.readUTF() 实际发送/接收的并不是 UTF-8 编码数据，而是一个修改过的 UTF-8 参考
• 更要命的是，writeUTF() 发送实际 UTF-8 前先会以 “UnsignedShort” 形式发送其长度，占两个字节

第2点会导致几个问题：

• writeUTF(str) 的返回值并不是 UTF-8 的长度，而是 UTF-8 的长度再加上 2
• readUTF() 跟 writeUTF() 配合使用不会有问题，因为 readUTF() 会先调用 readUnsignedShort() 读取 UTF-8 的长度 (不妨为 utflen)，然后再读取 utflen 个字节
• 如果不是使用 readUTF() 读取数据，而是其他方法，就要小心了。至于其他编程语言，就更要小心了！

说到这里，就不难理解 0 和 5 是怎么来的了。简单描述一下。

• Java Server 调用 DataOutputStream.writeUTF() 发送 “HELLO”
• “HELLO” 的 UTF-8 形式为 [72, 69, 76, 76, 79]
• 不过实际发送时还要考虑 UTF-8 的长度，所以发送的是 [0, 5, 72, 69, 76, 76, 79]
• Dart Client 收到 [0, 5, 72, 69, 76, 76, 79]
• Dart Client 解码时将 0 和 5 打印成乱码

之前另一个问题是：Server 端可以看到 Client 端连上来，但死活收不到数据，阻塞在 String echo = input.readUTF()。问题原因描述如下：

• Dart Client 发送 “HELLO”
• “HELLO” 的 UTF-8 形式为 [72, 69, 76, 76, 79]
• Java Server 调用 DataInputStream.readUTF() 接收 “HELLO”
• Java Server 会先调用 readUnsignedShort()，[72, 69] 作为 “UnsignedShort” 值为 18501
• readUTF() 会尝试读取 18501 个字节，但实际上只能读取 3 个字节，所以一直阻塞

public static void main(String[] args) {
    ByteBuffer bb = ByteBuffer.wrap(new byte[] {72, 69});
    ShortBuffer sb = bb.asShortBuffer();
    System.out.println(sb.get(0)); // [72, 69] 作为 short 值为 18501
}

总结

对 Java Server 进行修复，其代码避免调用 writeUTF() 和 readUTF()，而是分别使用 write() 和 read() 代替。

修复后的 Java Server 代码如下：

public class SimpleServer {

    public static void main(String[] args) throws Exception {

        final ExecutorService e = Executors.newFixedThreadPool(10);

        ServerSocket ss = new ServerSocket();
        ss.bind(new InetSocketAddress("127.0.0.1", 6760));

        System.out.println("Server started at port 6760");
        while (true) {
            e.execute(new ClientHandler(ss.accept()));
        }
    }

    private static class ClientHandler implements Runnable {

        private final Socket socket;

        private final DataInputStream input;
        private final DataOutputStream output;

        private final byte[] buf;


        private ClientHandler(Socket socket) throws IOException {
            this.socket = socket;
            input = new DataInputStream(socket.getInputStream());
            output = new DataOutputStream((socket.getOutputStream()));
            buf = new byte[1024];
        }

        @Override
        public void run() {
            System.out.println("A client coming " + socket.getInetAddress() + ":" + socket.getPort());

            try {
                int hasRead = input.read(buf);
                if (hasRead > 0) {
                    String echo = new String(buf, 0, hasRead);
                    System.out.println("Client said: " + echo);
                    output.write(echo.toUpperCase().getBytes());
                    output.flush();
                    System.out.println("Server said: " + echo.toUpperCase());
                } else {
                    throw new IOException("len is " + hasRead);
                }

            } catch (IOException e) {
                e.printStackTrace();
            } finally {
                close(input);
                close(output);
                close(socket);
            }

            System.out.println("This client has leave " + socket.getInetAddress() + ":" + socket.getPort());
        }
    }

    private static void close(Closeable closeable) {
        if (closeable != null) {
            try {
                closeable.close();
            } catch (IOException e) {
                e.printStackTrace();
            }
        }
    }
}

修复后的 Dart Client 如下：

import 'dart:async';
import 'dart:convert';
import 'dart:io';
main() async {
  Socket socket = await Socket.connect('127.0.0.1', 6760);
  print('connected');

  // listen to the received data event stream
  socket.listen((List<int> event) {
    print(event);
    print(utf8.decode(event));
  });

  // send hello
  socket.add(utf8.encode('hello'));


  // wait 5 seconds
  await Future.delayed(Duration(seconds: 5));

  // .. and close the socket
  socket.close();
}
