两个小的技术问题

发表于 更新于 评论： 阅读次数：

最近一次技术分享中遗留的两个疑问。分享时并不完全了解，下来后简单整理了一下，记录之。

Java中调用Kotlin的扩展方法

Kotlin中分别给Int和String添加如下扩展函数cm()。完整代码见这里

1
2
3
4
5
6
7
8
9
10
11
12
// ExtensionDemo.kt
fun Int.cm() {
    println("$this")
}

fun String.toInt(): Int {
    return try {
        Integer.parseInt(this)
    } catch (e: Exception) {
        0
    }
}

如何在Java代码中调用？形式是否能像Kotlin中那样简洁？

答案是否。Java代码调用方式如下：

1
2
3
4
public void test() {
    ExtensionDemoKt.cm(1);
    ExtensionDemoKt.toInt("123");
}

看看Kotlin生成的Java代码就容易明白为什么要这样调用。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
@Metadata(
   mv = {1, 1, 7},
   bv = {1, 0, 2},
   k = 2,
   d1 = {"\u0000\u0012\n\u0000\n\u0002\u0010\u0002\n\u0002\u0010\b\n\u0000\n\u0002\u0010\u000e\n
   \u0000\u001a\n\u0010\u0000\u001a\u00020\u0001*\u00020\u0002\u001a\n\u0010\u0003\u001a\u00020
   \u0002*\u00020\u0004¨\u0006\u0005"},
   d2 = {"cm", "", "", "toInt", "", "test sources for module demo-arch"}
)
public final class ExtensionDemoKt {
   public static final void cm(int $receiver) {
      String var1 = "" + $receiver;
      System.out.println(var1);
   }

   public static final int toInt(@NotNull String $receiver) {
      Intrinsics.checkParameterIsNotNull($receiver, "$receiver");

      int var1;
      try {
         var1 = Integer.parseInt($receiver);
      } catch (Exception var3) {
         var1 = 0;
      }

      return var1;
   }
}

总结：Kotlin的扩展函数本质上是生成以被扩展类的对象作为”receiver”参数的static方法。所以，在Java中调用Kotlin扩展函数就只能以调用普通static方法的方式进行。

Lifecycle的顺序问题

有一个LifecycleObserver，它的test5()响应Lifecycle.Event.ON_CREATE事件。在Activity.onCreate()期间执行addObserver()添加这个LifecycleObserver，test5()会被正确执行吗(能否输出”test5: ON_CREATE”吗) 完整代码见这里

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
public class LifecycleOwnerActivity extends AppCompatActivity {

    @Override
    protected void onCreate(@Nullable Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        getLifecycle().addObserver(new MyLifecycleObserver());
    }
}

public class MyLifecycleObserver implements LifecycleObserver {

    private static final String TAG = "MyLifecycleObserver";

    @OnLifecycleEvent(Lifecycle.Event.ON_CREATE)
    public void test5() {
        Log.d(TAG, "test5: ON_CREATE");
    }
}

答案是 可以正确输出。由于getLifecycle().addObserver()最终会执行到android.arch.lifecycle.LifecycleRegistry.addObserver()方法，所以对LifecycleRegistry.addObserver()源码进行分析。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
// android.arch.lifecycle.LifecycleRegistry.java
@Override
public void addObserver(@NonNull LifecycleObserver observer) {
    State initialState = mState == DESTROYED ? DESTROYED : INITIALIZED;
    ObserverWithState statefulObserver = new ObserverWithState(observer, initialState);
    ObserverWithState previous = mObserverMap.putIfAbsent(observer, statefulObserver);

    if (previous != null) {
        return;
    }
    LifecycleOwner lifecycleOwner = mLifecycleOwner.get();
    if (lifecycleOwner == null) {
        // it is null we should be destroyed. Fallback quickly
        return;
    }

    boolean isReentrance = mAddingObserverCounter != 0 || mHandlingEvent;
    State targetState = calculateTargetState(observer);
    mAddingObserverCounter++;
    while ((statefulObserver.mState.compareTo(targetState) < 0
            && mObserverMap.contains(observer))) {
        pushParentState(statefulObserver.mState);
        statefulObserver.dispatchEvent(lifecycleOwner, upEvent(statefulObserver.mState));
        popParentState();
        // mState / subling may have been changed recalculate
        targetState = calculateTargetState(observer);
    }

    if (!isReentrance) {
        // we do sync only on the top level.
        sync();
    }
    mAddingObserverCounter--;
}

static class ObserverWithState {
    State mState;
    GenericLifecycleObserver mLifecycleObserver;

    ObserverWithState(LifecycleObserver observer, State initialState) {
        mLifecycleObserver = Lifecycling.getCallback(observer);
        mState = initialState;
    }

    void dispatchEvent(LifecycleOwner owner, Event event) {
        State newState = getStateAfter(event);
        mState = min(mState, newState);
        mLifecycleObserver.onStateChanged(owner, event);
        mState = newState;
    }
}

首先，addObserver()会将原始的observer包装成带状态的statefulObserver。由于是在Activity.onCreate()方法调用addObserver()，所以statefulObserver的当前状态是INITIALIZED。

upEvent(statefulObserver.mState)根据当前状态生成Event对象，这个对象被statefulObserver.dispatchEvent()方法分发给mLifecycleObserver(注意它是另一个对原始observer的包装)。

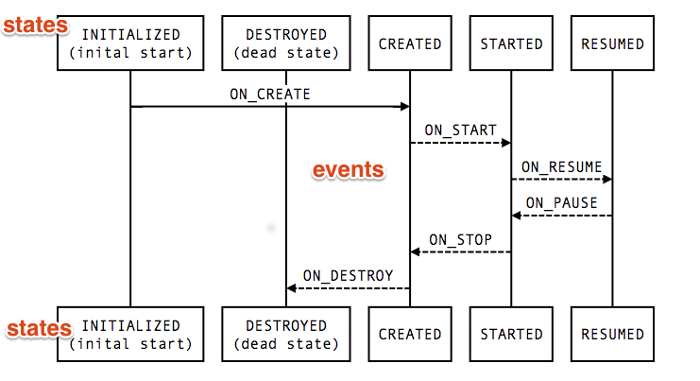

分发Event后statefulObserver进入下一状态，CREATED。更多状态变化见下图。

而ObserverWithState.mLifecycleObserver是通过Lifecycling.getCallback()静态方法获取到的，

1
GenericLifecycleObserver mLifecycleObserver = Lifecycling.getCallback(observer)

正是通过Lifecycling.getCallback()方法，我们可一览LifecycleObserver家族全貌。其中，除LifecycleObserver接口对外公开之外，全部是lifecycle内部使用的类。

  • LifecycleObserver
  • FullLifecycleObserver
  • GenericLifecycleObserver
  • FullLifecycleObserverAdapter
  • SingleGeneratedAdapterObserver
  • CompositeGeneratedAdaptersObserver
  • ReflectiveGenericLifecycleObserver

对于我们的MyLifecycleObserver，Lifecycling.getCallback(observer)方法将其包装成ReflectiveGenericLifecycleObserver。而ReflectiveGenericLifecycleObserver的关键在于CallbackInfo和ClassesInfoCache。代码如下。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
class ReflectiveGenericLifecycleObserver implements GenericLifecycleObserver {
    private final Object mWrapped;
    private final CallbackInfo mInfo;

    ReflectiveGenericLifecycleObserver(Object wrapped) {
        mWrapped = wrapped;
        mInfo = ClassesInfoCache.sInstance.getInfo(mWrapped.getClass());
    }

    @Override
    public void onStateChanged(LifecycleOwner source, Event event) {
        mInfo.invokeCallbacks(source, event, mWrapped);
    }
}

static class CallbackInfo {
    final Map<Lifecycle.Event, List<MethodReference>> mEventToHandlers;
    final Map<MethodReference, Lifecycle.Event> mHandlerToEvent;
}

不难理解ClassesInfoCache.createInfo(Class klass, @Nullable Method[] declaredMethods)方法的作用是：

解析其klass参数，找到带有OnLifecycleEvent注解的方法，将这些方法包装成MethodReference。最后，MethodReference会保存在mEventToHandlers。

最后梳理一下，整个调用顺序是这样的：

1
2
3
4
5
6
7
8
9
10
11
LifecycleRegistry.addObserver()

ObserverWithState.dispatchEvent()

ReflectiveGenericLifecycleObserver.onStateChanged()

CallbackInfo.invokeCallbacks()

MethodReference.invokeCallback()

Method.invoke()

这里的Method，正是MyLifecycleObserver.test5()方法，它以反射的方法被lifecycle库调用。

补充知识

LifecycleOwner是一个接口，实现该接口的类具有生命周期Lifecycle。Fragment和AppCompatActivity实现了LifecycleOwner接口，具有生命周期。

实现了LifecycleObserver接口的组件可以跟LifecycleOwner协同工作，因为它能观察LifecycleOwner的Lifecycle。

参考资料

lifecycle
